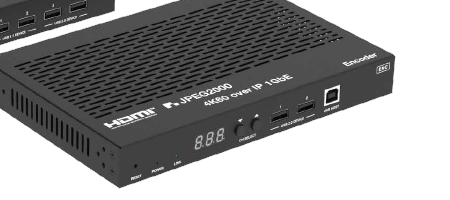

BLU-AVOIP-JP1G2-ENC
BLU-AVOIP-JP1G2-ENC

4K60 AVoIP 1GbE Encoder with Dual LAN

KVM, eARC/ARC, and separated video / Dante audio streaming.

A JPEG2000 encoder with dual Gigabit LAN ports for separated video and Dante audio streaming, ARC/eARC/S-PDIF/analog audio return, USB 2.0 KVM, two-way IR, RS-232, and relay/GPIO contact control — up to 328ft/100m over CAT6/6A/7, with PoE.

4K60 4:4:4 Dual LAN eARC/ARC USB 2.0/KVM PoE
Download user manual (PDF) Contact us

Specifications

HDCP CompliantHDCP 2.2
HDMI CompliantHDMI 2.0b
Video Bandwidth18Gbps
Video ResolutionUp to 4K@60Hz 4:4:4
Video CompressionJPEG2000
Transmission Distance328ft / 100m over CAT6/6A/7
LANDual Gigabit LAN — LAN Mode 1 (combined) or LAN Mode 2 (video/Dante separated, default)
Audio ReturneARC / ARC / S/PDIF / analog
ControlFront panel, IR, RS-232, TCP/IP, Web GUI
PowerPoE or DC 12V/2.5A
Dimensions204 × 136 × 25.5mm

Highlights

  • Dual Gigabit LAN — separate Dante audio from JPEG2000 video traffic
  • eARC/ARC, S/PDIF and analog audio return
  • USB 2.0 KVM, bi-directional RS-232 and two-way IR pass-through
  • Two relay channels and two GPIO channels for contact control
  • Video wall up to 9×9, unicast and multicast, built-in MJPEG substream preview
  • Dante AV-A ready (license-activated), 1U or 6U V2 rack mountable
Full user manual (PDF)
