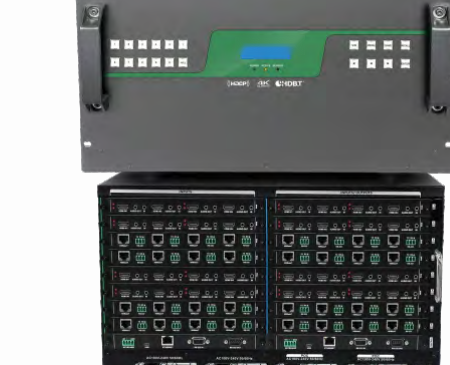

A LED/LCD splicing matrix switcher with modular design and hybrid plug-in structure — the first hybrid plug-in splicing matrix built for asymmetrical signals, using hybrid cards to get an excess of inputs alongside a reasonable number of outputs. Three chassis sizes scale from a small meeting room to a full command-center video wall.
| Signal Types | Fiber, Fiber 4K, DVI, HDMI 4K, HDBaseT, HDBaseT 4K |
| Max Resolution | 4Kx2K@60Hz 4:4:4 per input/output channel |
| Input / Output | Up to 120 ch. 4K input, up to 68 ch. 4K splicing output |
| Switching | Full digital, seamless — 0ms delay, no black field / flash / fragmentation |
| Control | Front panel, IR, RS232 + loop-out, Ethernet, RS422, web / mobile visual control |
| Redundancy | Optional dual control cards, optional redundant PSU, hot-swap fans |
| Working Temperature | -10 ~ +55°C |
| Working Humidity | <90% non-condensing |
Tell us the sources, screens and distances in your install — we'll confirm the right fit and send pricing.
