BLU-JP1G-WPHC-ENC

JPEG2000 4K60 AVoIP 1GbE Encoder — Wall-plate

Name: BLU-JP1G-WPHC-ENC JPEG2000 4K60 AVoIP 1GbE Encoder (Wall-plate)
Brand: bluKnot
SKU: BLU-JP1G-WPHC-ENC

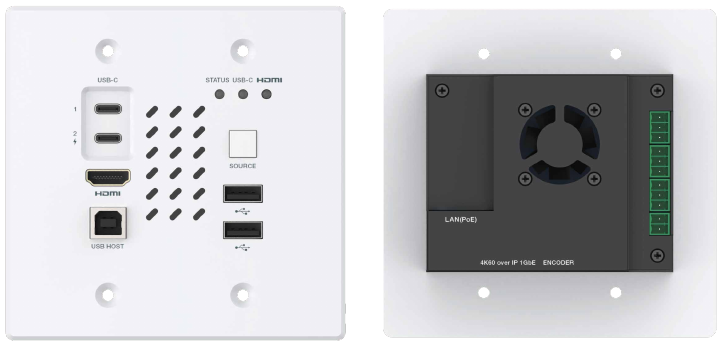

The same AVoIP encoder, built into a US 2-gang wall-plate.

A 2-gang wall-plate JPEG2000 encoder with HDMI and USB-C dual inputs at up to 4K60 4:4:4, USB 2.0 KVM, bi-directional RS-232, and PoE — extending signal up to 328ft/100m over a single CAT6/6A/7 cable, right from the wall.

4K60 4:4:4 18Gbps 2-Gang Wall-plate USB 2.0 / KVM PoE

Download user manual (PDF) Contact us

Specifications

HDCP Compliant	HDCP 2.2, DP 1.2
HDMI Compliant	HDMI 2.0b
Video Bandwidth	18Gbps
Video Resolution	Up to 4K60 4:4:4
Video Compression	JPEG2000
Transmission Distance	328ft / 100m over CAT6/6A/7
Form Factor	US 2-Gang wall-plate
Control	RS-232, TCP/IP, Web GUI
Power	PoE (802.3at) or DC 12V/2.5A
Dimensions	115.9 × 114.3 × 44.25mm

Highlights

HDMI and USB-C dual input with auto and manual switching
USB-C 1 passes video/audio/USB and charges the source device via USB-C 2
USB 2.0 KVM and bi-directional RS-232 pass-through
Video wall up to 9×9, unicast and multicast, built-in MJPEG substream preview
Dante AV-A ready (license-activated)
Works with any decoder in the same bluKnot JPEG2000 AV-over-IP series

Full user manual (PDF)
