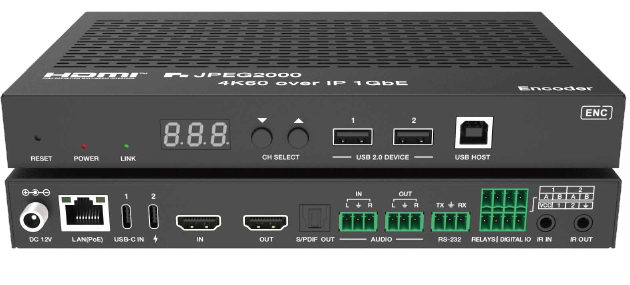

BLU-JP1G-HC-ENC
BLU-JP1G-HC-ENC

JPEG2000 4K60 AVoIP 1GbE Encoder

KVM, eARC/ARC, HDMI & USB-C in — one cable to the network.

A 1U-style JPEG2000 encoder with HDMI and USB-C dual inputs at up to 4K60 4:4:4, eARC/ARC/ S-PDIF/analog audio return, USB 2.0 KVM, bi-directional RS-232, two-way IR, and relay/GPIO contact control — all over a single CAT6/6A/7 cable up to 328ft/100m, with PoE.

4K60 4:4:4 18Gbps eARC/ARC USB 2.0 / KVM PoE
Download user manual (PDF) Contact us

Specifications

HDCP CompliantHDCP 2.2
HDMI CompliantHDMI 2.0b
Video Bandwidth18Gbps
Video Resolution480i ~ 1080p50/60Hz, 4K2K@24/30/50/60Hz
Video CompressionJPEG2000
Transmission Distance328ft / 100m over CAT6/6A/7
Audio ReturneARC / ARC / S/PDIF / analog (point-to-point)
ControlFront panel, IR, RS-232, TCP/IP, Web GUI
PowerPoE (802.3at) or DC 12V/2.5A
Dimensions204 × 136 × 25.5mm

Highlights

  • HDMI and USB-C dual input with auto switching and configurable priority
  • eARC/ARC, S/PDIF and analog audio return (point-to-point)
  • USB 2.0 KVM, bi-directional RS-232 and two-way IR pass-through
  • Two relay channels and two GPIO channels for contact control
  • Video wall up to 9×9, unicast and multicast, built-in MJPEG substream preview
  • Dante AV-A ready (license-activated), 1U or 6U V2 rack mountable
Full user manual (PDF)
