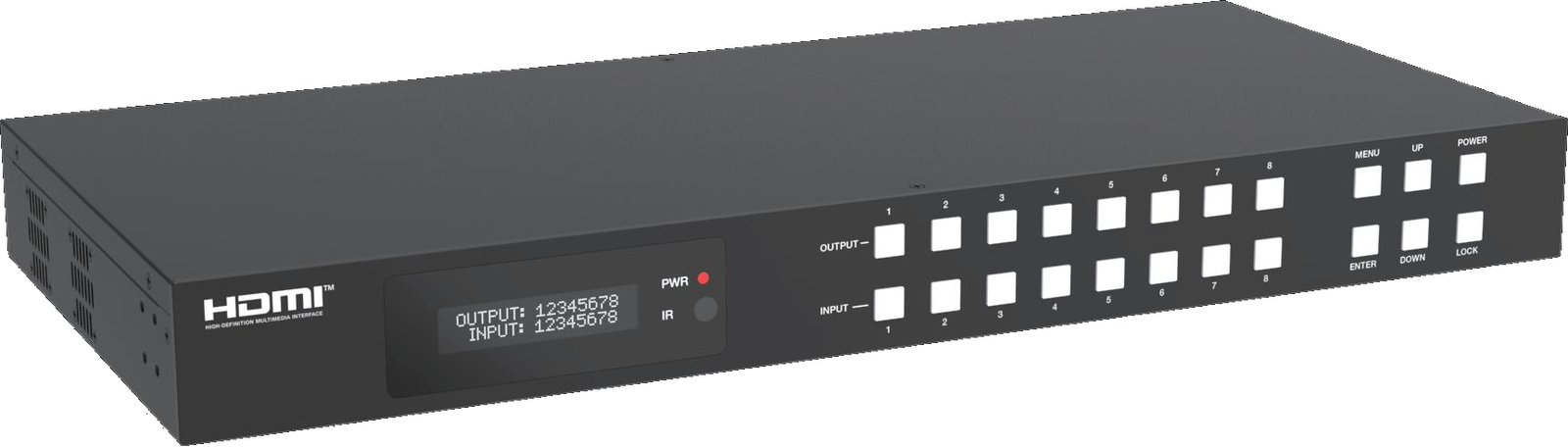

BLU-HDM2-88VW
BLU-HDM2-88VW

18Gbps 8×8 Seamless Matrix

Eight sources, eight screens, seamlessly.

Eight HDMI sources to eight HDTV displays at up to 4K@60Hz 4:4:4, with per-output resolution downscaling, video wall, 12-mode multi-view, a built-in Web server, 8-channel balanced and optical audio de-embed, and frame-accurate seamless switching with no dropped frames. Controlled from the front panel, IR remote, RS-232, or the Web GUI.

8×8 18Gbps 4K60 4:4:4 Video Wall Multi-View
Download user manual (PDF) Contact us

Specifications

HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.2
Video Bandwidth594MHz / 18Gbps
Video ResolutionUp to 4K@60Hz 4:4:4
Color SpaceRGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
AudioHDMI in/out full-spec pass-through; balanced L/R + optical de-embed
ControlPanel, IR remote, RS-232, Web GUI
PowerDC 24V/3.75A, 70W max
Dimensions440 × 300 × 44.5mm, 1U

Highlights

  • Eight HDMI inputs, eight HDMI outputs, up to 4K@60Hz 4:4:4
  • Seamless switching — no black field, no frame loss
  • Video wall up to 8×8, plus 12-mode multi-view with PIP, Dual, Triple, Quad and user layouts
  • 8-channel balanced analog and optical audio de-embed, independently routable
  • Advanced EDID management — 12 presets, 2 user slots, 8 copy modes
  • CEC control, power-off memory, and a full built-in Web GUI
Full user manual (PDF)
