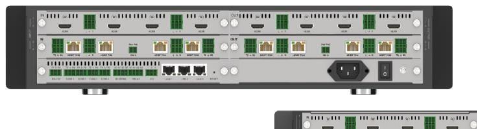

A modular matrix that routes anything, anywhere.
A card-based chassis that switches and distributes HDMI, DVI-U, VGA, SDI, HDBaseT and fibre signals with an integrated video-wall engine. Pure-hardware switching, no compression or delay.
| Type | Modular seamless matrix |
|---|---|
| Configuration | 16 × 16 (4 in + 4 out cards) |
| HDMI | HDMI 2.0b (4K card) |
| Bandwidth | 600 MHz / 18Gbps |
| Max resolution | 3840×2160p60 (4:4:4) |
| Card structure | Pluggable, 4 channels / card |
| Video wall | Seamless, Gen-Lock <0.1ms |
| Power | DC 12V, dual redundant |
Tell us the sources, screens and distances in your install — we’ll confirm the right fit and send pricing.
