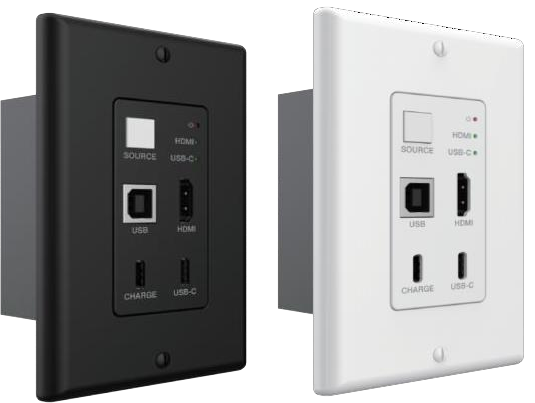

A 2×1 switcher and HDBaseT transmitter built into a US one-gang enclosure for Decora-style wall openings. The USB-C input gives a single-cable AV interface for modern notebooks and mobiles, up to 4K@60Hz 4:4:4, extending up to 70 m (1080p) or 40 m (4K) over one CAT6/6a/7 cable — remotely powered by the receiver over PoE.
| HDMI Compliance | HDMI 2.0b, DisplayPort 1.2a |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18 Gbps |
| Max Resolution | 4096×2160@60Hz 4:4:4 |
| Transmission Distance | 230ft / 70m (1080p) · 131ft / 40m (4K) over CAT6/6a/7 |
| Inputs | 1× HDMI Type A, 1× USB-C |
| Output | 1× HDBaseT OUT [RJ45], 1× USB-C (charging) |
| Power | PoE — receiver to transmitter only |
| Enclosure | US one-gang, Decora-style, metal, white or black |
Tell us the sources, screens and distances in your install — we'll confirm the right fit and send pricing.
